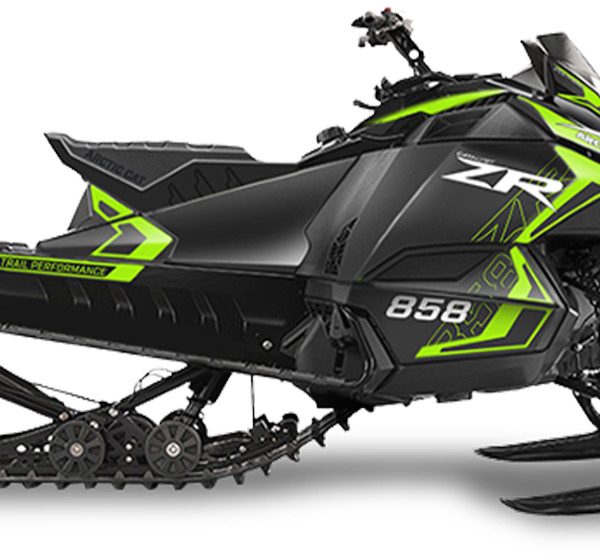

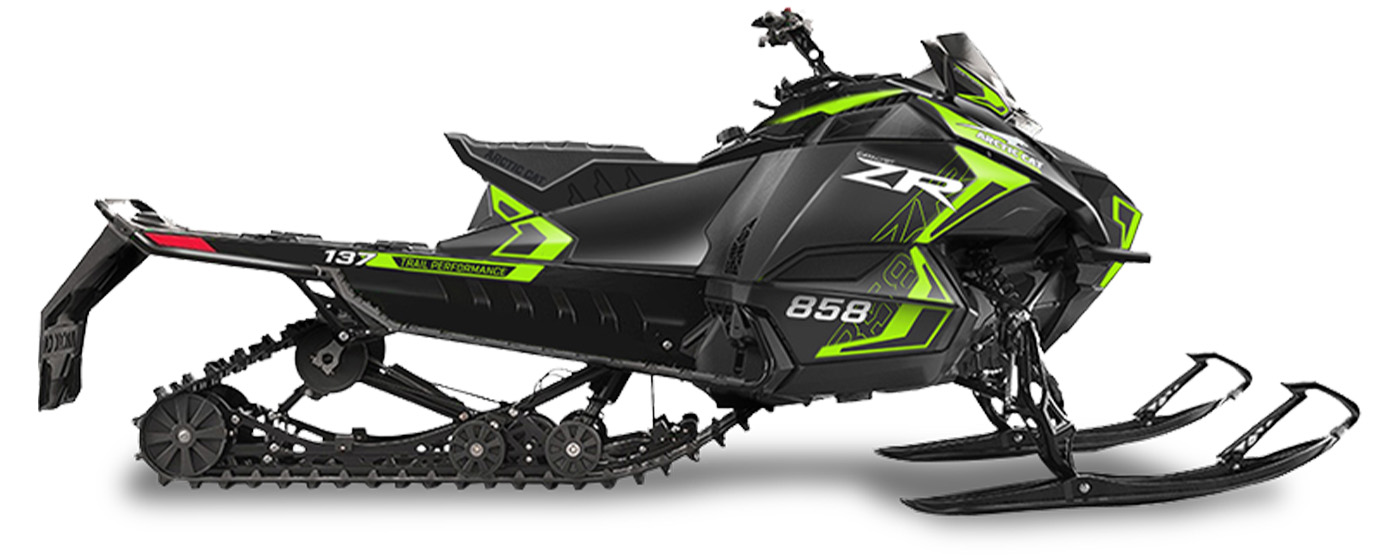

Arctic Cat ZR 858 with ATAC

Arctic Cat ZR 858 with ATAC

Contact us for price

Stock status: Call Store for Availability

The ZR® delivers responsive handling, solid power and everything you need for a full day of trail domination. It’s built for riders who want lightweight control without sacrificing ride quality. Confident, capable and ready for anything..oem-arctic-cat .responsive-table tbody td:not([data-heading=’ZR 858 with ATAC’]):not([data-heading=”]){display:none;}

Call Us Now

Specs

Overview

  • 858 C-TEC2™ Engine
  • FOX® iQS Shocks with ATAC
  • Ripsaw II Track
  • Arctic Cat G8 Digital Display

Engine

ZR 400 ZR 600 Sno ProZR 600 with ATACZR 858 Sno ProZR 858 with ATAC
Engine Type
400, 2-Stroke 600, 2-Stroke600, 2-Stroke858, 2-Stroke858, 2-Stroke
Displacement
397cc 599cc599cc858cc858cc
Cooling
Liquid LiquidLiquidLiquidLiquid
Cylinders
1 2222
Bore x Stroke
85 x 70 mm 73.8 x 70 mm73.8 x 70 mm85 x 75.6 mm85 x 75.6 mm
Lubrication
Electronic Injection Electronic InjectionElectronic InjectionElectronic InjectionElectronic Injection
Ignition
<!-->
 Digitally Controlled CDI Digitally Controlled CDIDigitally Controlled CDIDigitally Controlled CDIDigitally Controlled CDI
Engine Stator Output
270W @ 3000 RPM 270W @ 3000 RPM270W @ 3000 RPM270W @ 3000 RPM270W @ 3000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI) Dual Stage InjectionDual Stage InjectionNext Gen. C-TEC2Next Gen. C-TEC2
Exhaust
-->
 APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler APV w/ Tuned Pipe, Pipe Sensor, Stainless Steel Manifold & MufflerAPV w/ Tuned Pipe, Pipe Sensor, Stainless Steel Manifold & MufflerAPV IV w/ Full Stainless Steel Exhaust & EGT SensorsAPV IV w/ Full Stainless Steel Exhaust & EGT Sensors
Fuel Capacity
<!-->
 11.7 gal 10.4 gal10.4 gal10.4 gal10.4 gal
Oil System Capacity
-->
 3.25 qt 3.0 qt3.0 qt3.0 qt3.0 qt
Coolant System Capacity
<!-->
 4.6 qt 5.3 qt or 5.4 qt5.3 qt or 5.4 qt5.4 qt5.4 qt
Minimum Octane
91 91919191

Powertrain

ZR 400 ZR 600 Sno ProZR 600 with ATACZR 858 Sno ProZR 858 with ATAC
Drive Clutch
CVTech Trailbloc ADAPTADAPTADAPTADAPT
Driven Clutch
CVTech Invance ADAPTADAPTADAPTADAPT
Drive System
-->
 Arctic Drive System AC Trail Belt DriveAC Trail Belt DriveAC Trail Belt DriveAC Trail Belt Drive
Brakes
<!-->
 Stealth Hydraulic Master Cylinder Stealth Hydraulic Master CylinderStealth Hydraulic Master CylinderStealth Hydraulic Master CylinderStealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft 0-5,000 ft0-5,000 ft0-5,000 ft0-5,000 ft
Gearing
-->
 19/50 27/6027/6030/5830/58
Chain Pitch
<!-->
 90 BeltBeltBeltBelt
Track Drive Sprocket
9 Tooth, 2.52 Pitch, Involute 9 Tooth, 2.86 Pitch, Involute9 Tooth, 2.86 Pitch, Involute9 Tooth, 2.86 Pitch, Involute9 Tooth, 2.86 Pitch, Involute
Reverse
-->
 Push-Button Engine Push-Button EnginePush-Button EnginePush-Button EnginePush-Button Engine

Suspension

ZR 400 ZR 600 Sno ProZR 600 with ATACZR 858 Sno ProZR 858 with ATAC
Front Suspension
<!-->
 Arctic Mountain Suspension (AMS) AWS 42AWS 42AWS 42AWS 42
Ski Shocks
-->
 Hydraulic Twin Tube AC5SFOX 1.5 ZERO iQSAC5SFOX 1.5 ZERO iQS
Sway Bar
N/A StandardStandardStandardStandard
Front Travel
<!-->
 7.2 in 8.2 in8.2 in8.2 in8.2 in
Rear Suspension
-->
 Slide-Rail, Dual Shock & Adjustable Torsion Springs (129)SLIDE-ACTION with 3 Wheel Rear Axle Assembly & Adjustable Torsion Springs (137)SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion SpringsSLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion Springs w/ ATAC System(129)SLIDE-ACTION with 3 Wheel Rear Axle Assembly & Adjustable Torsion Springs (137)SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion SpringsSLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion Springs w/ ATAC System
Front Track Shock
<!-->
 Hydraulic Twin Tube AC5SArctic Cat IFP 1.5AC5SArctic Cat IFP 1.5
Rear Track Shock
-->
 Hydraulic Twin Tube AC5SFOX 2.0 ZERO iQSAC5SFOX 2.0 ZERO iQS
Rear Travel
<!-->
 10.7 in 13.5 in13.5 in13.5 in13.5 in

Dimensions

ZR 400 ZR 600 Sno ProZR 600 with ATACZR 858 Sno ProZR 858 with ATAC
Overall Chassis Length
-->
 115 in 118 in or 126 in126 in118 in or 126 in126 in
Overall Chassis Width
<!-->
 44-45 in 48-49 in48-49 in48-49 in48-49 in
Overall Chassis Height
-->
 45 in 47 in47 in47 in47 in
Track Type
<!-->
 Hacksaw Ripsaw or Ripsaw IIRipsaw IIRipsaw or Ripsaw IIRipsaw II
Track Width
-->
 14 in 15 in15 in15 in15 in
Track Length
<!-->
 121 in 129 in or 137 in137 in129 in or 137 in137 in
Lug
-->
 1.00 in 1.25 in1.25 in1.25 in1.25 in
Pitch
2.52 in 2.86 in2.86 in2.86 in2.86 in
Ski Stance
<!-->
 37.5-38.5 in - Adjustable 41.5-42.5 in - Adjustable41.5-42.5 in - Adjustable41.5-42.5 in - Adjustable41.5-42.5 in - Adjustable
Ski Type/Width
-->
 Trail - 6 in Trail - 6 inTrail - 6 inTrail - 6 inTrail - 6 in
Runner Type
<!-->
 Twin Split Long Dual Runner 4-Bolt w/ CarbideLong Dual Runner 4-Bolt w/ CarbideLong Dual Runner 4-Bolt w/ CarbideLong Dual Runner 4-Bolt w/ Carbide

Instrumentation

ZR 400 ZR 600 Sno ProZR 600 with ATACZR 858 Sno ProZR 858 with ATAC
Type of Gauge
-->
 Powersport SportArctic Cat G8 (CAN w/o GRR)Sport or Arctic Cat G8Arctic Cat G8 (CAN w/o GRR)
Speedometer
<!-->
 Digital DigitalDigitalDigitalDigital
Tachometer
Digital DigitalDigitalDigitalDigital
Odometer
-->
 Digital DigitalDigitalDigitalDigital
Fuel
<!-->
 Digital DigitalDigitalDigitalDigital
Oil
-->
 Indicator Light LCD IconIndicator LightLCD Icon (Digital G8)Digital
Coolant
<!-->
 Indicator Light Digital Bar GraphLCD IconDigital Bar Graph (LCD Icon G8)LCD Icon
Clock
-->
 N/A N/ADigitalN/A (Digital G8)Digital
Battery Voltage
<!-->
 N/A N/ADigitalN/A (Digital G8)Digital
Altimeter
-->
 N/A N/ADigitalN/A (Digital G8)Digital
Hours
<!-->
 Digital DigitalDigitalDigitalDigital

Features

ZR 400 ZR 600 Sno ProZR 600 with ATACZR 858 Sno ProZR 858 with ATAC
Color
-->
 Black/Medium Green Black/Medium GreenBlack/Medium GreenBlack/Medium GreenBlack/Medium Green
Heat Exchanger
Front/Long Tunnel Front/Long TunnelFront/Long TunnelFront/Long TunnelFront/Long Tunnel
Starter
<!-->
 Turnkey Electric Start Push-Button Electric StartPush-Button Electric StartPush-Button Electric StartPush-Button Electric Start
Handlebars
-->
 Hooked HookedHookedHookedHooked
Lighting
<!-->
 Halogen 1-Bulb LEDLEDLEDLED
Seating
-->
 Mid-Size TrailTrailTrailTrail
Standard Accessories
<!-->
 Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch 12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In
Windshield
-->
 4 in Low Height 5.5 in Low Height5.5 in Low Height5.5 in Low Height5.5 in Low Height
.oem-arctic-cat .responsive-table tbody td:not([data-heading='ZR 858 with ATAC']):not([data-heading='']){display:none;}
