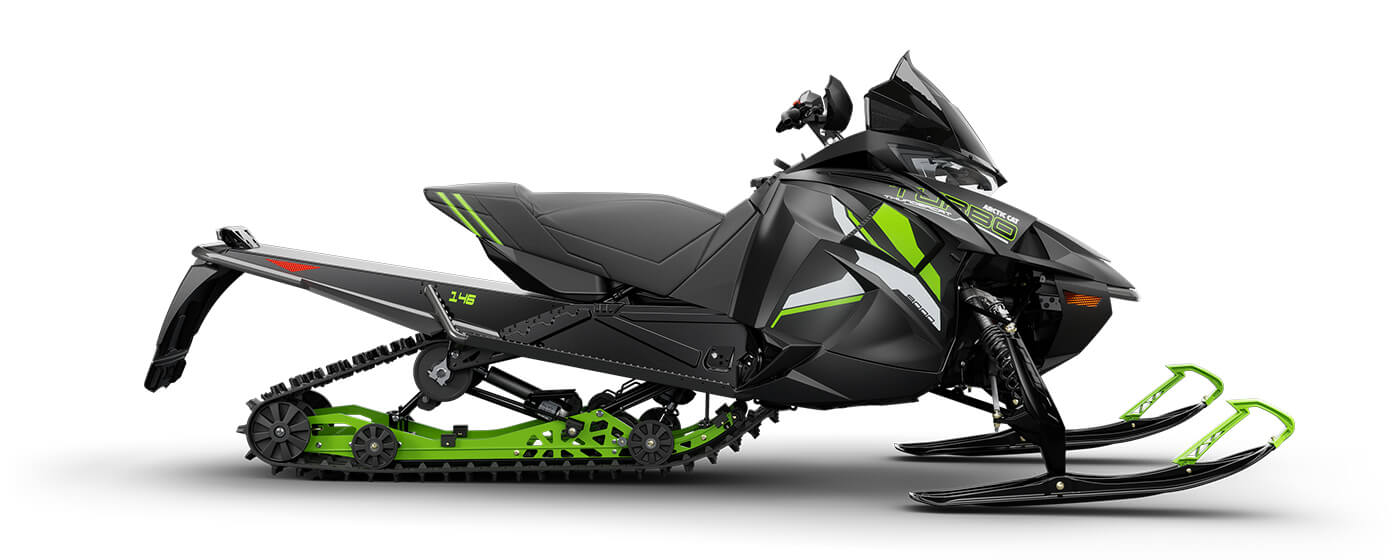

Arctic Cat Thundercat 146

Arctic Cat Thundercat 146

Contact us for price

Stock status: Call Store for Availability

It’s the fastest, fiercest snowmobile on the planet. And when you’re in control, you’re untouchable. The Thundercat® is the ultimate ride for the speed demon in your life..oem-arctic-cat .responsive-table tbody td:not([data-heading=’Thundercat 146′]):not([data-heading=”]){display:none;}

Call Us Now

Specs

Overview

  • Turbocharged 998cc C-TEC4™ 4-Stroke Engine
  • ATAC-3 Adjustable-on-the-Fly Suspension
  • Fox iQS Ski Shocks
  • Cross Action II Rear Suspension
  • Fox iQS Rear Track/Arctic Cat IFP Front Track Shock
  • Electronic Power Steering
  • Arctic Cat G8 Display

Engine

Thundercat Thundercat 146
Engine Type
9000 Turbo, 4-Stroke 9000 Turbo, 4-Stroke
Displacement
998cc 998cc
Cooling
Liquid Liquid
Cylinders
3-Turbocharged 3-Turbocharged
Bore x Stroke
80 x 66.2 mm 80 x 66.2 mm
Lubrication
Dry Sump Dry Sump
Ignition
<!-->
 Digital Controlled Coil Induction Digital Controlled Coil Induction
Engine Stator Output
545W @ 5000 RPM 545W @ 5000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI) Electronic Fuel Injected (EFI)
Exhaust
-->
 Turbocharger w/ Stainless Steel Muffler Turbocharger w/ Stainless Steel Muffler
Fuel Capacity
<!-->
 9.9 gal 9.9 gal
Oil System Capacity
-->
 3.8 qt 3.8 qt
Coolant System Capacity
<!-->
 6.2 qt 6.4 qt
Minimum Octane
91 91

Powertrain

Thundercat Thundercat 146
Drive Clutch
ADAPT ADAPT
Driven Clutch
ADAPT ADAPT
Drive System
-->
 Arctic Drive System Arctic Drive System
Brakes
<!-->
 Stealth Hydraulic Master Cylinder Stealth Hydraulic Master Cylinder
Clutch Calibration
0-10,000 ft 0-10,000 ft
Gearing
-->
 24/50 22/48
Chain Pitch
<!-->
 92 90
Track Drive Sprocket
9 Tooth, 2.86 Pitch, Exvolute 9 Tooth, 2.86 Pitch, Exvolute
Reverse
-->
 Push-Button Push-Button Engine

Suspension

Thundercat Thundercat 146
Front Suspension
<!-->
 ARS II w/ ATAC ARS II w/ ATAC
Ski Shocks
-->
 FOX 1.5 iQS FOX 1.5 iQS
Sway Bar
Standard Standard
Front Travel
<!-->
 9 in 9 in
Rear Suspension
-->
 SLIDE-ACTION w/ 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs and ATAC System CROSS-ACTION II w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & Elevated Rear Wheel
Front Track Shock
<!-->
 Arctic Cat IFP 1.5 Arctic Cat IFP 1.5
Rear Track Shock
-->
 FOX 2.0 iQS FOX 2.0 iQS
Rear Travel
<!-->
 13.5 in 13.5 in

Dimensions

Thundercat Thundercat 146
Overall Chassis Length
-->
 125 in 132 in
Overall Chassis Width
<!-->
 48-49 in 48-49 in
Overall Chassis Height
-->
 48 in 48 in
Track Type
<!-->
 Ripsaw II Cobra
Track Width
-->
 15 in 15 in
Track Length
<!-->
 137 in 146 in
Lug
-->
 1.25 in 1.35 in
Pitch
2.86 in 2.86 in
Ski Stance
<!-->
 42-43 in - Adjustable 42-43 in - Adjustable
Ski Type/Width
-->
 Trail - 6 in Trail - 6 in
Runner Type
<!-->
 Long Dual Runner 4-Bolt w/ Carbide Long Dual Runner 4-Bolt With Carbide

Instrumentation

Thundercat Thundercat 146
Type of Gauge
-->
 G8 (CAN w/o Group Ride) G8 (CAN w/o Group Ride)
Speedometer
<!-->
 Digital Digital
Tachometer
Digital Digital
Odometer
-->
 Digital Digital
Fuel
<!-->
 Digital Digital
Oil
-->
 Digital Digital
Coolant
<!-->
 LCD Icon LCD Icon
Clock
-->
 Digital Digital
Battery Voltage
<!-->
 Digital Digital
Altimeter
-->
 Digital Digital
Hours
<!-->
 Digital Digital

Features

Thundercat Thundercat 146
Color
-->
 Black & Green/Black & Red Black & Green/Black & Red
Heat Exchanger
Front/Long Tunnel Front/Long Tunnel
Starter
<!-->
 Push-Button Electric Start Push-Button Electric Start
Handlebars
-->
 Hooked Hooked
Lighting
<!-->
 LED w/ Accent Light LED w/ Accent Light
Seating
-->
 Trail 4S Trail 4S
Standard Accessories
<!-->
 12V Outlet, Electronic Power Steering, Sport Front Bumper, Goggle Holder, Heated Seat, Hand & Thumb Warmers, Standard Brake Disc, Rear Storage, Tether Switch, Tunnel Flares, Visor Plug-In 12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmers, Heated Driver Seat, Ice Scratchers, Rear Storage, Standard Brake Disc, EPS Steering, Tether Switch, Mid Tunnel Bag, Tunnel Flare, Visor Plug-In
Windshield
-->
 11 in Mid-Height 11 in Mid Height
.oem-arctic-cat .responsive-table tbody td:not([data-heading='Thundercat 146']):not([data-heading='']){display:none;}
