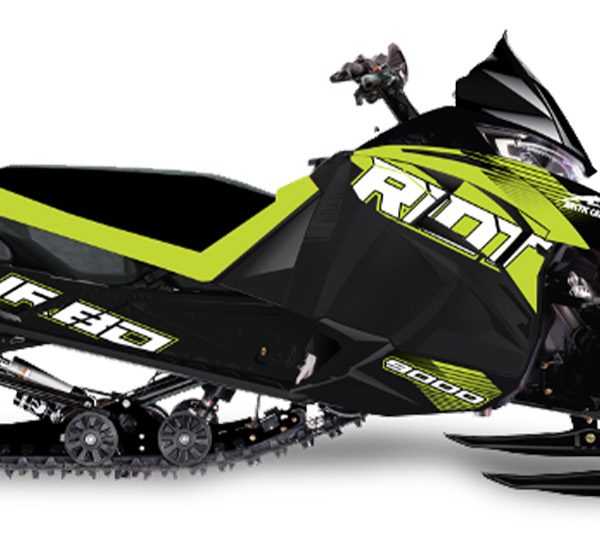

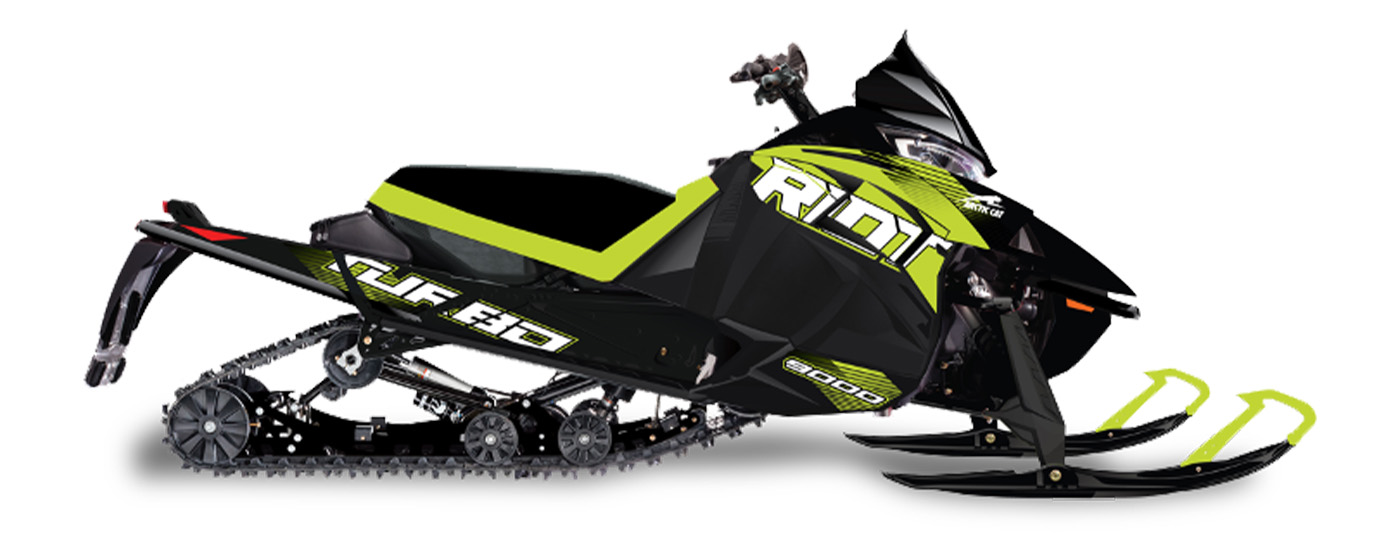

Arctic Cat Riot 9000 with ATAC

Arctic Cat Riot 9000 with ATAC

Contact us for price

Stock status: Call Store for Availability

Arctic Cat offers a crossover for every rider and style. The Riot™ rides lighter, hits harder and handles tighter than ever. Whether you’re diving off-trail or carving groomed runs at speed, these crossover snowmobiles respond with ease and authority..oem-arctic-cat .responsive-table tbody td:not([data-heading=’Riot 9000 with ATAC’]):not([data-heading=”]){display:none;}

Call Us Now

Specs

Overview

  • 9000-Series C-TEC4™ Turbocharged Engine
  • FOX® iQS Shocks with ATAC
  • Cobra™ Track
  • Digital Deluxe Gauge
  • Power Steering



Engine

Riot 400 Riot 600 Sno ProRiot 858 Sno ProRiot 858 with ATACRIOT 9000 with ATAC
Engine Type
400, 2-Stroke 600, 2-Stroke858, 2-Stroke858, 2-Stroke9000 Turbo, 4-Stroke
Displacement
397cc 599cc858cc858cc998cc
Cooling
Liquid LiquidLiquidLiquidLiquid
Cylinders
1 2223-Turbocharged
Bore x Stroke
85 x 70 mm 73.8 x 70 mm85 x 75.6 mm85 x 75.6 mm80 x 66.2 mm
Lubrication
Electronic Injection Electronic InjectionElectronic InjectionElectronic InjectionDry Sump
Ignition
<!-->
 Digitally Controlled CDI Digitally Controlled CDIDigitally Controlled CDIDigitally Controlled CDIDigital Controlled Coil Induction
Engine Stator Output
270W @ 3000 RPM 270W @ 3000 RPM270W @ 3000 RPM270W @ 3000 RPM545W @ 5000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI) Dual Stage InjectionNext Gen. C-TEC2Next Gen. C-TEC2Electronic Fuel Injected (EFI)
Exhaust
-->
 APV w/ Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler APV w/ Tuned Pipe, Pipe Sensor, Stainless Steel Manifold & MufflerAPV IV w/ Full Stainless Steel Exhaust & EGT SensorsAPV IV w/ Full Stainless Steel Exhaust & EGT SensorsTurbocharger w/ Stainless Steel Muffler
Fuel Capacity
<!-->
 11.7 gal 10.4 gal10.4 gal10.4 gal9.9 gal
Oil System Capacity
-->
 3.25 qt 3.0 qt3.0 qt3.0 qt3.8 qt
Coolant System Capacity
<!-->
 5.0 qt 5.4 qt5.4 qt5.4 qt6.4 qt
Minimum Octane
91 91919191

Powertrain

Riot 400 Riot 600 Sno ProRiot 858 Sno ProRiot 858 with ATACRIOT 9000 with ATAC
Drive Clutch
CVTech Trailbloc ADAPTADAPTADAPTADAPT
Driven Clutch
CV Tech Invance ADAPTADAPTADAPTADAPT
Drive System
-->
 Arctic Drive System AC Trail Belt DriveAC Trail Belt DriveAC Trail Belt DriveArctic Drive System
Brakes
<!-->
 Stealth Hydraulic Master Cylinder Stealth Hydraulic Master CylinderStealth Hydraulic Master CylinderStealth Hydraulic Master CylinderStealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft 0-5,000 ft0-5,000 ft0-5,000 ft0-10,000 ft
Gearing
-->
 19/50 27/6027/6027/6022/48
Chain Pitch
<!-->
 90 BeltBeltBelt90
Track Drive Sprocket
8 Tooth, 2.86 Pitch, Involute 9 Tooth, 2.86 Pitch, Exvolute9 Tooth, 2.86 Pitch, Exvolute9 Tooth, 2.86 Pitch, Exvolute9 Tooth, 2.86 Pitch, Exvolute
Reverse
-->
 Push-Button Engine Push-Button EnginePush-Button EnginePush-Button EnginePush-Button Engine

Suspension

Riot 400 Riot 600 Sno ProRiot 858 Sno ProRiot 858 with ATACRIOT 9000 with ATAC
Front Suspension
<!-->
 Arctic Mountain Suspension (AMS) AWS 39AWS 39AWS 39ARS II w/ ATAC
Ski Shocks
-->
 Hydraulic Twin Tube AC5SAC5SFOX 1.5 ZERO iQSFOX 1.5 ZERO iQS
Sway Bar
N/A StandardStandardStandardStandard
Front Travel
<!-->
 7.2 in 7.5 in7.5 in7.5 in9 in
Rear Suspension
-->
 Slide-Rail, Dual Shock & Adjustable Torsion Springs CROSS-ACTION w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm & Adjustable Torsion SpringsCROSS-ACTION w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm & Adjustable Torsion SpringsCROSS-ACTION w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm & Adjustable Torsion Springs w/ ATAC SystemCROSS-ACTION w/ 3 Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & ATAC System
Front Track Shock
<!-->
 Hydraulic Twin Tube AC5SAC5SArctic Cat IFP 1.5Arctic Cat IFP 1.5
Rear Track Shock
-->
 Hydraulic Twin Tube AC5SAC5SFOX 2.0 ZERO iQSFOX 2.0 ZERO iQS
Rear Travel
<!-->
 12.5 in 13.5 in13.5 in13.5 in13.5 in

Dimensions

Riot 400 Riot 600 Sno ProRiot 858 Sno ProRiot 858 with ATACRIOT 9000 with ATAC
Overall Chassis Length
-->
 128 in 130.5 in130.5 in130.5 in132 in
Overall Chassis Width
<!-->
 44-45 in 48-49 in48-49 in48-49 in48-49 in
Overall Chassis Height
-->
 45 in 49 in49 in49 in48 in
Track Type
<!-->
 Cobra HurricaneHurricaneHurricaneCobra
Track Width
-->
 15 in 15 in15 in15 in15 in
Track Length
<!-->
 146 in 146 in146 in146 in146 in
Lug
-->
 1.60 in 1.75 in1.75 in1.75 in1.35 in
Pitch
2.86 in 2.86 in2.86 in2.86 in2.86 in
Ski Stance
<!-->
 37.5-38.5 in - Adjustable 38-40 in - Adjustable38-40 in - Adjustable38-40 in - Adjustable41.5-43.5 in - Adjustable
Ski Type/Width
-->
 Trail - 6 in G2 ProClimb - 7 inG2 ProClimb - 7 inG2 ProClimb - 7 inG2 ProClimb - 7 in
Runner Type
<!-->
 Single Runner Single Runner w/ CarbideSingle Runner w/ CarbideSingle Runner w/ CarbideSingle Runner w/ Carbide

Instrumentation

Riot 400 Riot 600 Sno ProRiot 858 Sno ProRiot 858 with ATACRIOT 9000 with ATAC
Type of Gauge
-->
 Powersport SportSport or Arctic Cat G8Arctic Cat G8 (CAN w/o GRR)Deluxe Digital
Speedometer
<!-->
 Digital DigitalDigitalDigitalDigital
Tachometer
Digital DigitalDigitalDigitalDigital
Odometer
-->
 Digital DigitalDigitalDigitalDigital
Fuel
<!-->
 Digital DigitalDigitalDigitalDigital
Oil
-->
 Indicator Light LCD IconLCD Icon (Digital G8)DigitalIndicator Light
Coolant
<!-->
 Indicator Light Digital Bar GraphDigital Bar Graph (LCD Icon G8)LCD IconDigital/Indicator Light
Clock
-->
 N/A N/AN/A (Digital G8)DigitalDigital
Battery Voltage
<!-->
 N/A N/AN/A (Digital G8)DigitalDigital
Altimeter
-->
 N/A N/AN/A (Digital G8)DigitalDigital
Hours
<!-->
 Digital DigitalDigitalDigitalDigital

Features

Riot 400 Riot 600 Sno ProRiot 858 Sno ProRiot 858 with ATACRIOT 9000 with ATAC
Color
-->
 Black/Orange Sorbet Black/Orange SorbetBlack/Orange SorbetBlack/Orange SorbetBlack/Hyper Green
Heat Exchanger
Front/Long Tunnel Front/Long TunnelFront/Long TunnelFront/Long TunnelFront/Long Tunnel
Starter
<!-->
 Turnkey Electric Start Push-Button Electric StartPush-Button Electric StartPush-Button Electric StartPush-Button Electric Start
Handlebars
-->
 Hooked HookedHookedHookedHooked
Lighting
<!-->
 Halogen 1-Bulb LEDLEDLEDLED w/ Accent Light
Seating
-->
 Mountain TrailTrailTrailMountain
Standard Accessories
<!-->
 Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch 12V Outlet, Sport Front Bumper, Integrated Goggle Holder, Hand & Thumb Warmers, Ice Scratchers, Standard Brake Disc, Ratio Steering, ATACH Rear Storage, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Ice Scratchers, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Ice Scratchers, Integrated Goggle Holder, ATACH mounting, Hand & Thumb Warmers, Standard Brake Disc, Ratio Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmers, Heated Driver Seat, Ice Scratchers, Rear Storage, Standard Brake Disc, Electronic Power Steering, Tether Switch, Visor Plug-In
Windshield
-->
 4 in Low Height 5.5 in Low Height5.5 in Low Height5.5 in Low Height5.5 in Race Height
