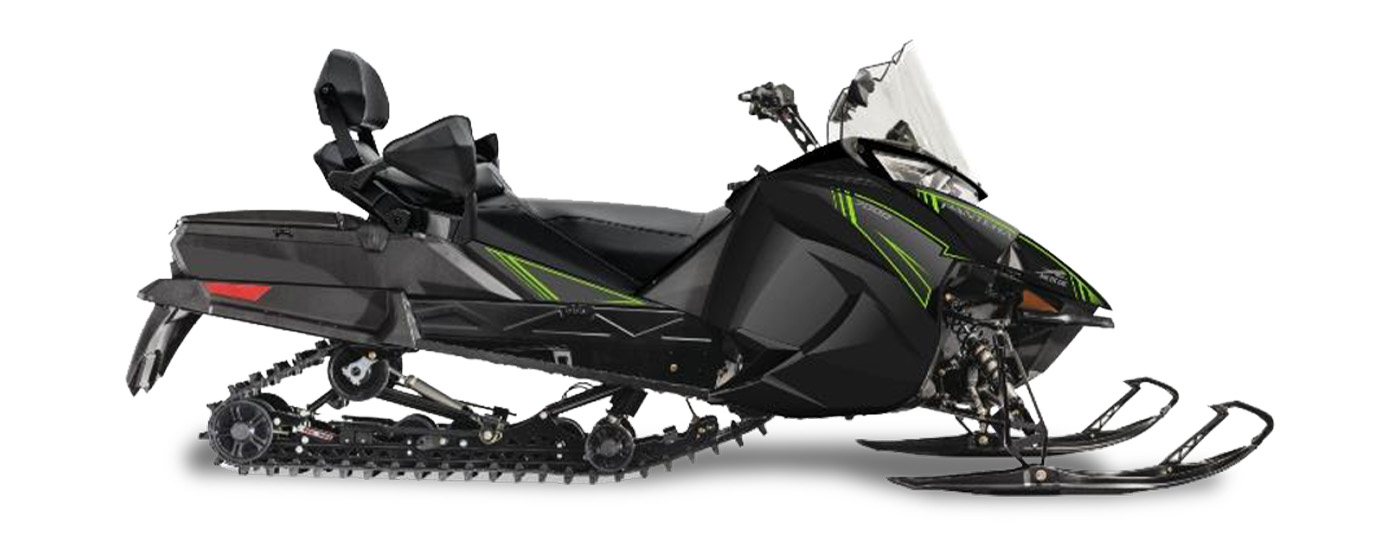

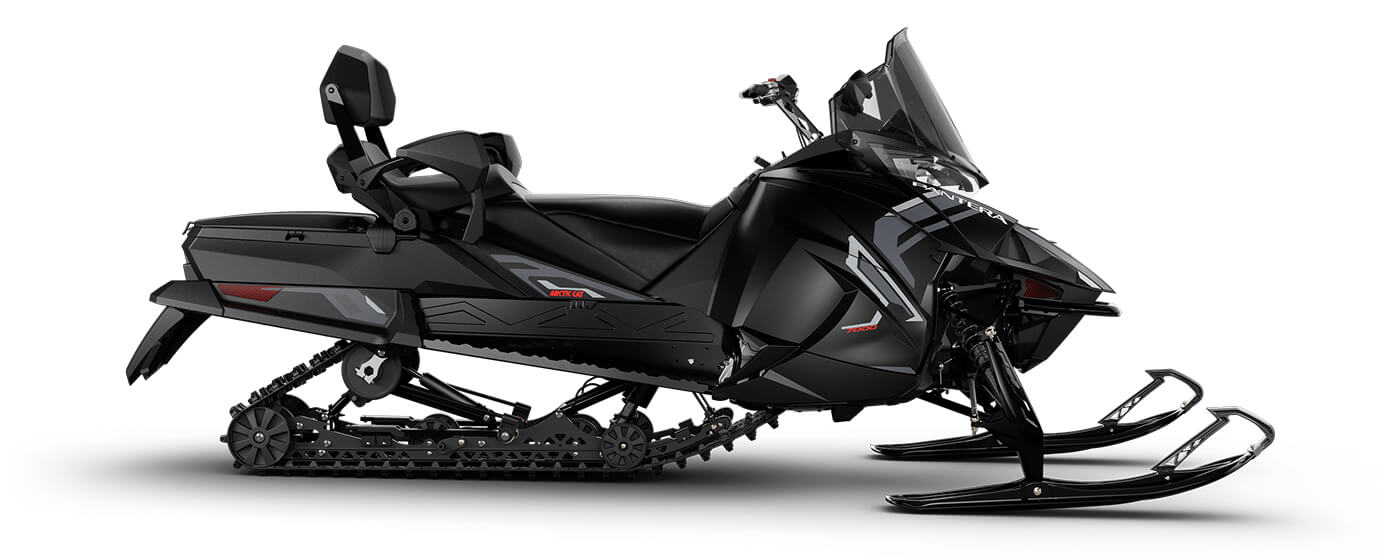

Arctic Cat Pantera 7000

Arctic Cat Pantera 7000

$20,099.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

The Pantera® is built for long-distance comfort and loaded with features that make every mile smoother. Heated seats, rear storage and a turbo option mean you and your passenger can chase the horizon in total control..oem-arctic-cat .responsive-table tbody td:not([data-heading=’Pantera 7000′]):not([data-heading=”]){display:none;}

Call Us Now

Specs

Overview

  • 1049cc C-TEC4 4-Stroke Engine
  • ARS™ II Front Suspension
  • Arctic Cat IFP Shocks
  • SLIDE-ACTION Rear Suspension
  • Heated Driver and Passenger Seat
  • Deluxe Gauge




Engine

PANTERA 400 PANTERA 7000PANTERA 9000
Engine Type
400, 2-Stroke 7000, 4-Stroke9000 Turbo, 4-Stroke
Displacement
397cc 1049cc998cc
Cooling
Liquid LiquidLiquid
Cylinders
1 33
Bore x Stroke
85 x 70 mm 82 x 62.2 mm80 x 66.2 mm
Lubrication
Electronic Injection Dry SumpDry Sump
Ignition
<!-->
 Digitally Controlled CDI Digital Controlled Coil InductionDigital Controlled Coil Induction
Engine Stator Output
270W @ 3000 RPM 515W @ 5000 RPM545W @ 5000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI) Electronic Fuel Injected (EFI)Electronic Fuel Injected (EFI)
Exhaust
-->
 APV w/ Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler 3-into-1 Stainless Steel Pipe w/ Stainless Steel MufflerTurbocharger w/ Stainless Steel Muffler
Fuel Capacity
<!-->
 11.7 gal 10.7 gal15 gal
Oil System Capacity
-->
 3.25 qt 4.4 qt3.8 qt
Coolant System Capacity
<!-->
 5.0 qt 4.8 qt6.2 qt
Minimum Octane
91 8791

Powertrain

PANTERA 400 PANTERA 7000PANTERA 9000
Drive Clutch
CVTech Trailbloc ADAPTADAPT
Driven Clutch
CVTech Invance ADAPTADAPT
Drive System
-->
 Arctic Drive System Arctic Drive SystemArctic Drive System
Brakes
<!-->
 Stealth Hydraulic Master Cylinder Stealth Hydraulic Master CylinderStealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft 0-5,000 ft0-10,000 ft
Gearing
-->
 19/50 21/4922/48
Chain Pitch
<!-->
 90 9090
Track Drive Sprocket
8 Tooth, 2.86 Pitch, Involute 9 Tooth, 2.86 Pitch, Exvolute9 Tooth, 2.86 Pitch, Exvolute
Reverse
-->
 Push-Button Engine Push-ButtonPush-Button

Suspension

PANTERA 400 PANTERA 7000PANTERA 9000
Front Suspension
<!-->
 Arctic Mountain Suspension (AMS) ARS IIARS
Ski Shocks
-->
 Hydraulic Twin Tube Arctic Cat IFP 1.5Arctic Cat IFP 1.5
Sway Bar
Standard StandardStandard
Front Travel
<!-->
 7.2 in 9.5 in9.5 in
Rear Suspension
-->
 Slide-Rail, Dual Shock, Adjustable Torsion Springs & Overload Springs SLIDE-ACTION Rear Suspension, Coupling Blocks, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & Fiberglass Overload SpringsSLIDE-ACTION Rear Suspension, Coupling Blocks, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & Fiberglass Overload Springs
Front Track Shock
<!-->
 Hydraulic Twin Tube Arctic Cat IFP 1.5Arctic Cat IFP 1.5
Rear Track Shock
-->
 Hydraulic Twin Tube Arctic Cat IFP 1.5Arctic Cat IFP 1.5
Rear Travel
<!-->
 12.5 in 13.5 in13.5 in

Dimensions

PANTERA 400 PANTERA 7000PANTERA 9000
Overall Chassis Length
-->
 128 in 129 in129 in
Overall Chassis Width
<!-->
 46-47 in 48-49 in48-49 in
Overall Chassis Height
-->
 51 in 51 in51 in
Track Type
<!-->
 Ripsaw RipsawRipsaw
Track Width
-->
 15 in 15 in15 in
Track Length
<!-->
 146 in 146 in146 in
Lug
-->
 1.25 in 1.25 in1.25 in
Pitch
2.86 in 2.86 in2.86 in
Ski Stance
<!-->
 39.5-40.5 in - Adjustable 42-43 in - Adjustable42-43 in - Adjustable
Ski Type/Width
-->
 Trail - 6 in ProTour - 6 inProTour - 6 in
Runner Type
<!-->
 Twin Split Twin SplitTwin Split

Instrumentation

PANTERA 400 PANTERA 7000PANTERA 9000
Type of Gauge
-->
 Standard Deluxe DigitalG8 (CAN w/o Group Ride)
Speedometer
<!-->
 Digital DigitalDigital
Tachometer
Digital DigitalDigital
Odometer
-->
 Digital DigitalDigital
Fuel
<!-->
 Digital DigitalDigital
Oil
-->
 Indicator Light Indicator LightIndicator Light
Coolant
<!-->
 Indicator Light Digital/Indicator LightDigital/Indicator Light
Clock
-->
 N/A DigitalDigital
Battery Voltage
<!-->
 N/A DigitalDigital
Altimeter
-->
 N/A DigitalDigital
Hours
<!-->
 Digital DigitalDigital

Features

PANTERA 400 PANTERA 7000PANTERA 9000
Color
-->
 Black BlackBlack
Heat Exchanger
Front/Long Tunnel FrontFront/Long Tunnel
Starter
<!-->
 Turnkey Electric Start Turnkey Electric StartPush-Button Electric Start
Handlebars
-->
 Hooked HookedHooked
Lighting
<!-->
 Halogen 1-Bulb LED w/ Accent LightLED w/ Accent Light
Seating
-->
 Mountain w/Passenger TouringTouring
Standard Accessories
<!-->
 Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch 12V Outlet, Adjustable Backrest, Sport Front Bumper, Hand & Thumb Warmers, Radiator, Heated Seats, Brake Disc, Mirrors, Passenger Hand Warmers, Passenger Footrests, Passenger Seat, Passenger Wind Deflectors, Tether Switch, Visor Plug-Ins, 16.4L Rear Storage Compartment12V Outlet, Adjustable Backrest, Sport Front Bumper, Hand & Thumb Warmers, Goggle Holder, Heated Seats, Brake Disc, Mirrors, Electronic Power Steering, Passenger Hand Warmers, Passenger Footrests, Passenger Seat, Passenger Wind Deflectors, Tether Switch, Visor Plug-Ins, 16.4L Rear Storage Compartment & Locking Detachable Storage Cases
Windshield
-->
 15.5 in High Height 14 in Mid-Height14 in Mid-Height
