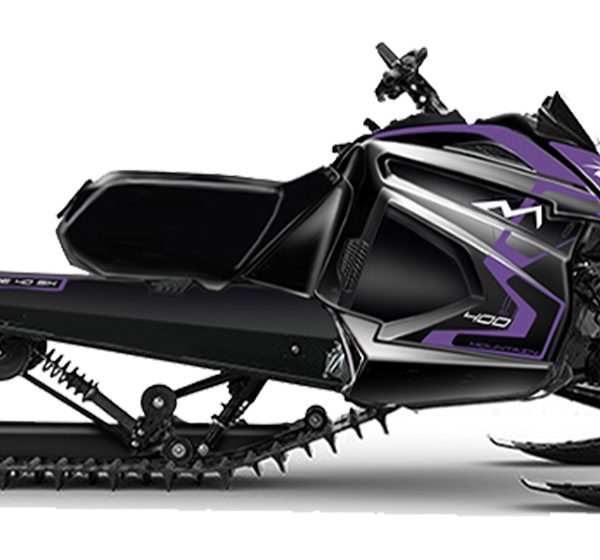

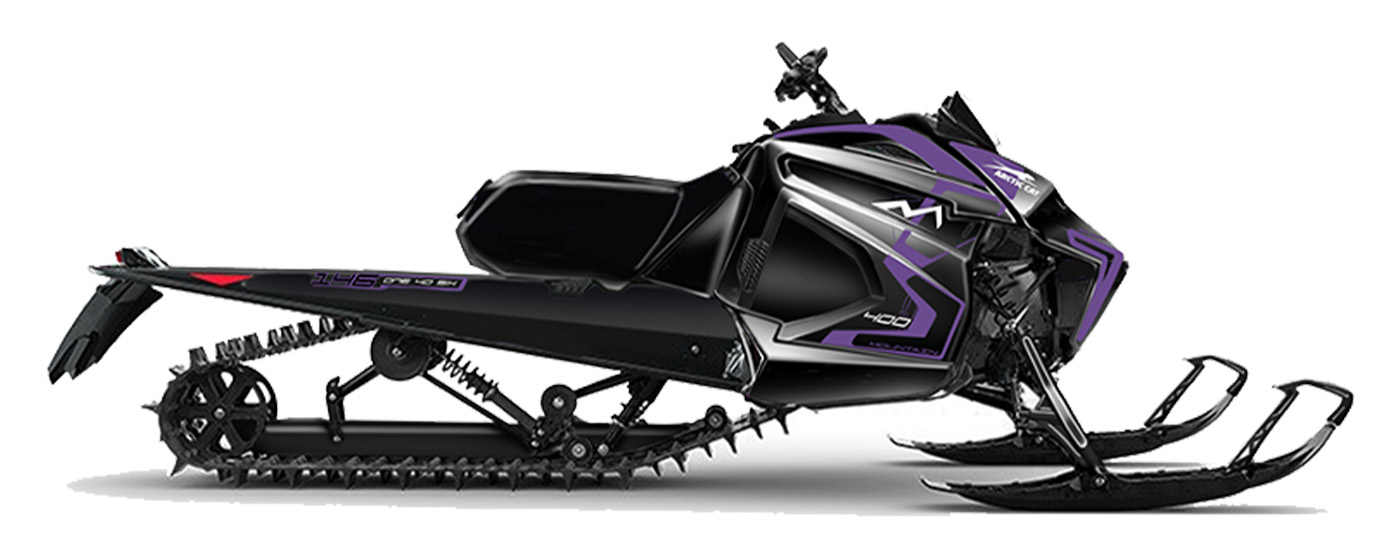

Arctic Cat M 400

Arctic Cat M 400

$9,999.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

Designed on the revolutionary CATALYST™ platform, the M ALPHA ONE is perfectly balanced to respond to your every move, keeping you agile, stable and fully in control. It’s more than a ride — it gives you command over the backcountry..oem-arctic-cat .responsive-table tbody td:not([data-heading=’M 400′]):not([data-heading=”]){display:none;}

Call Us Now

Specs

Overview

  • 400-Series EFI Engine
  • Hydraulic Twin Tube Shocks
  • Challenger™ Track
  • Powersport Gauge

Engine

M 400 M 600 SNO PROM 858 SNO PROHCR 858HCX 858
Engine Type
400, 2-Stroke 600, 2-Stroke858, 2-Stroke858, 2-Stroke858, 2-Stroke
Displacement
397cc 599cc858cc858cc858cc
Cooling
Liquid LiquidLiquidLiquidLiquid
Cylinders
1 2222
Bore x Stroke
85 x 70 mm 73.8 x 70 mm85 x 75.6 mm85 x 75.6 mm85 x 75.6 mm
Lubrication
Electronic Injection Electronic InjectionElectronic InjectionElectronic InjectionElectronic Injection
Ignition
<!-->
 Digitally Controlled CDI Digitally Controlled CDIDigitally Controlled CDIDigitally Controlled CDIDigitally Controlled CDI
Engine Stator Output
270W @ 3000 RPM 270W @ 3000 RPM270W @ 3000 RPM270W @ 3000 RPM270W @ 3000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI) Dual Stage InjectionNext Gen. C-TEC2Next Gen. C-TEC2Next Gen. C-TEC2
Exhaust
-->
 APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler APV w/ Tuned Pipe, Pipe Sensor, Stainless Steel Manifold & MufflerAPV IV w/ Full Stainless Steel Exhaust & EGT SensorsAPV IV w/ Full Stainless Steel Exhaust & EGT SensorsAPV IV w/ Full Stainless Steel Exhaust & EGT Sensors
Fuel Capacity
<!-->
 10.4 gal 10.4 gal10.4 gal10.4 gal10.4 gal
Oil System Capacity
-->
 3.25 qt 3.0 qt3.0 qt3.0 qt3.0 qt
Coolant System Capacity
<!-->
 5.0 qt 4.2 qt4.2 qt5.4 qt5.4 qt
Minimum Octane
91 91919191

Powertrain

M 400 M 600 SNO PROM 858 SNO PROHCR 858HCX 858
Drive Clutch
CVTech Trailbloc ADAPTADAPTADAPTADAPT
Driven Clutch
CVTech Invance ADAPTADAPTADAPTADAPT
Drive System
-->
 Arctic Drive System AC M Belt DriveAC M Belt DriveAC M Belt DriveAC M Belt Drive
Brakes
<!-->
 Stealth Hydraulic Master Cylinder w/ Lightweight Caliper Stealth 88 Hydraulic Master CylinderStealth 88 Hydraulic Master CylinderStealth 88 Hydraulic Master CylinderStealth 88 Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft 6,000-8,000 ft6,000-8,000 ft6,000-8,000 ft6,000-8,000 ft
Gearing
-->
 19/50 24/6324/63 (2.6 in) 22/64 (3.0 in)24/6324/63
Chain Pitch
<!-->
 90 BeltBeltBeltBelt
Track Drive Sprocket
7 Tooth, 2.86 Pitch, Involute 9 Tooth, 2.86 Pitch, Exvolute9 Tooth, 2.86 Pitch, Exvolute or 7 Tooth, 3.50 Pitch, Exvolute9 Tooth, 2.86 Pitch, Exvolute 9 Tooth, 2.86 Pitch, Exvolute
Reverse
-->
 Push-Button Engine Push-Button EnginePush-Button EnginePush-Button EnginePush-Button Engine

Suspension

M 400 M 600 SNO PROM 858 SNO PROHCR 858HCX 858
Front Suspension
<!-->
 Arctic Mountain Suspension (AMS) AWS 36AWS 36AWS 36AWS 36
Ski Shocks
-->
 Hydraulic Twin Tube AC5SAC5SFOX 1.5 ZERO QS3FOX FLOAT 3 QS3
Sway Bar
N/A N/AN/AN/AN/A
Front Travel
<!-->
 8.3 in 7.6 in7.6 in7.6 in7.6 in
Rear Suspension
-->
 ALPHA ONE Rear Suspension ALPHA ONE Rear Suspension w/10 in Rear WheelsALPHA ONE Rear Suspension w/10 in Rear WheelsFLOAT ACTION Rear Suspension w/10 in Rear Wheels, Braced Rails & Coupling BlocksFLOAT ACTION Rear Suspension w/10 in Rear Wheels & Braced Rails
Front Track Shock
<!-->
 Hydraulic Twin Tube AC5SAC5SFOX 1.5 ZERO QS3FOX FLOAT 3 QS3
Rear Track Shock
-->
 Hydraulic Twin Tube AC5SAC5SFOX 2.0 ZERO QSLFOX FLOAT 3 QSL
Rear Travel
<!-->
 14.75 in 13.5 in or 14.5 in14.5 in or 15.5 in14.5 in13.5 in

Dimensions

M 400 M 600 SNO PROM 858 SNO PROHCR 858HCX 858
Overall Chassis Length
-->
 128 in 122 in or 126.5 in126.5 in or 131 in126.5 in122 in
Overall Chassis Width
<!-->
 42.5-44.5 in 42-44 in42-44 in42-44 in42-44 in
Overall Chassis Height
-->
 48 in 50 in50 in50 in50 in
Track Type
<!-->
 Challenger PowerClawPowerClawPowerClawPowerClaw
Track Width
-->
 15 in 15 in15 in15 in15 in
Track Length
<!-->
 146 in 146 in or 154 in154 in, or 165 in154 in146 in
Lug
-->
 2.00 in 2.60 in2.60 in or 3.00 in2.60 in2.60 in
Pitch
2.86 in 2.86 in2.86 in or 3.50 in2.86 in2.86 in
Ski Stance
<!-->
 35.5-37.5 in - Adjustable 35-37 in - Adjustable35-37 in - Adjustable35-37 in - Adjustable35-37 in - Adjustable
Ski Type/Width
-->
 G2 ProClimb - 7 in G2 ProClimb - 7 inG2 ProClimb - 7 inG2 ProClimb - 7 inG2 ProClimb - 7 in
Runner Type
<!-->
 Single Runner Single Runner w/ CarbideSingle Runner w/ CarbideSingle Runner w/ CarbideSingle Runner w/ Carbide

Instrumentation

M 400 M 600 SNO PROM 858 SNO PROHCR 858HCX 858
Type of Gauge
-->
 Powersport SportSport or Arctic Cat G8 (CAN w/o GRR)SportSport
Speedometer
<!-->
 Digital DigitalDigitalDigitalDigital
Tachometer
Digital DigitalDigitalDigitalDigital
Odometer
-->
 Digital DigitalDigitalDigitalDigital
Fuel
<!-->
 Digital DigitalDigitalDigitalDigital
Oil
-->
 Indicator Light LCD IconLCD Icon (Digital G8)LCD IconLCD Icon
Coolant
<!-->
 Indicator Light Digital Bar GraphDigital Bar Graph (LCD Icon G8)Digital Bar GraphDigital Bar Graph
Clock
-->
 N/A N/AN/A (Digital G8)N/AN/A
Battery Voltage
<!-->
 N/A N/AN/A (Digital G8)N/AN/A
Altimeter
-->
 N/A N/AN/A (Digital G8)N/AN/A
Hours
<!-->
 Digital DigitalDigitalDigitalDigital

Features

M 400 M 600 SNO PROM 858 SNO PROHCR 858HCX 858
Color
-->
 Black/Dusk Purple Black/Dusk PurpleBlack/Dusk PurpleBlack/Arctic GoldBlack/Quicksilver
Heat Exchanger
Front/Long Tunnel Front/Short TunnelFront/Short TunnelFront/Short TunnelFront/Long Tunnel
Starter
<!-->
 Turnkey Electric Start Push-Button Electric StartManual or Push-Button Electric StartManualManual
Handlebars
-->
 Hooked w/ Grab Handle Hooked w/ Grab HandleHooked w/ Grab HandleHooked w/ Grab HandleHooked w/ Grab Handle
Lighting
<!-->
 Halogen 1-Bulb LEDLEDLEDLED
Seating
-->
 Lightweight Mountain MountainMountainMountainMountain
Standard Accessories
<!-->
 Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch 12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH Mounting, Hand & Thumb Warmers, Ice Scratchers, Lightweight Mountain Brake Disc, Vertical Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH Mounting, Hand & Thumb Warmers, Ice Scratchers, Lightweight Mountain Brake Disc, Vertical Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH Mounting, Hand & Thumb Warmers, Ice Scratchers, Lightweight Mountain Brake Disc, Vertical Steering, Tether Switch, Visor Plug-In12V Outlet, Sport Front Bumper, Integrated Goggle Holder, ATACH Mounting, Hand & Thumb Warmers, Ice Scratchers, Lightweight Mountain Brake Disc, Laydown Steering, Tether Switch, Visor Plug-In
Windshield
-->
 4 in Low Height N/AN/AN/AN/A
.oem-arctic-cat .responsive-table tbody td:not([data-heading='M 400']):not([data-heading='']){display:none;}
