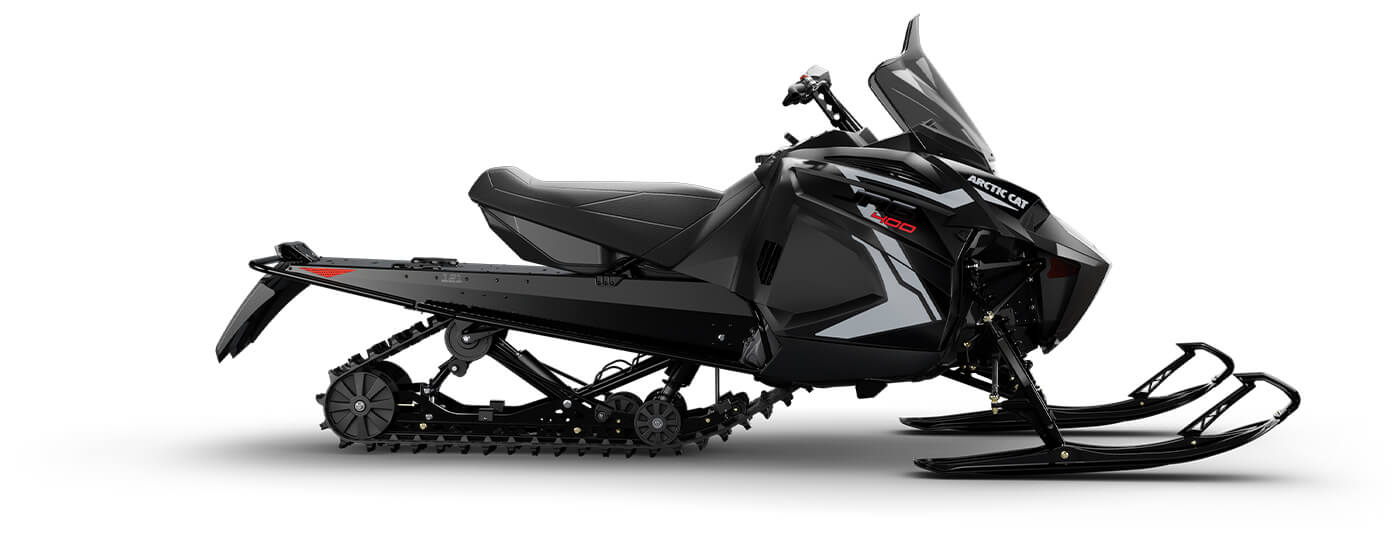

Arctic Cat Jag 400

Arctic Cat Jag 400

$9,499.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

The Jag is back — bringing its race-inspired heritage to the trail in a way few expect. Compact and approachable, the Jag lineup is built to surprise, delivering sharp handling and confident cornering that punches well above its weight..oem-arctic-cat .responsive-table tbody td:not([data-heading=’Jag 400′]):not([data-heading=”]){display:none;}

Call Us Now

Specs

Overview

  • 397cc C-TEC2 Single Cylinder EFI Engine
  • AMS™ 37 Front Suspension
  • Hydraulic Twin Tube Shocks
  • 14” x 121” x 1” Hacksaw Track
  • Electric Start
  • High Windshield

Engine

Jag 400 Jag 400 Sno Pro SGJag 400 Sno Pro
Engine Type
400, 2-Stroke 400, 2-Stroke400, 2-Stroke
Displacement
397cc 397cc397cc
Cooling
Liquid LiquidLiquid
Cylinders
1 11
Bore x Stroke
85 x 70 mm 85 x 70 mm85 x 70 mm
Lubrication
Electronic Injection Electronic InjectionElectronic Injection
Ignition
<!-->
 Digitally Controlled CDI Digitally Controlled CDIDigitally Controlled CDI
Engine Stator Output
270W @ 3000 RPM 270W @ 3000 RPM270W @ 3000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI) Electronic Fuel Injected (EFI)Electronic Fuel Injected (EFI)
Exhaust
-->
 APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler APV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel MufflerAPV with Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler
Fuel Capacity
<!-->
 11.7 gal 11.7 gal11.7 gal
Oil System Capacity
-->
 3.25 qt 3.25 qt3.25 qt
Coolant System Capacity
<!-->
 4.6 qt 4.6 qt4.6 qt
Minimum Octane
91 9191

Powertrain

Jag 400 Jag 400 Sno Pro SGJag 400 Sno Pro
Drive Clutch
CVTech Trailbloc CVTech TrailblocCVTech Trailbloc
Driven Clutch
CVTech Invance CVTech InvanceCVTech Invance
Drive System
-->
 Arctic Drive System Arctic Drive SystemArctic Drive System
Brakes
<!-->
 Stealth Hydraulic Master Cylinder Stealth Hydraulic Master CylinderStealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft 0-5,000 ft0-5,000 ft
Gearing
-->
 19/50 19/5019/50
Chain Pitch
<!-->
 90 9090
Track Drive Sprocket
9 tooth, 2.52 pitch, involute 8 Tooth, 2.86 Pitch, Involute8 Tooth, 2.86 Pitch, Involute
Reverse
-->
 Push-Button Engine Push-Button EnginePush-Button Engine

Suspension

Jag 400 Jag 400 Sno Pro SGJag 400 Sno Pro
Front Suspension
<!-->
 Arctic Mountain Suspension (AMS) Arctic Mountain Suspension (AMS)Arctic Mountain Suspension (AMS)
Ski Shocks
-->
 Hydraulic Twin Tube AC5SAC5S
Sway Bar
Standard N/AN/A
Front Travel
<!-->
 7.2 in 7.2 in7.2 in
Rear Suspension
-->
 Slide-rail, dual shock and adjustable torsion springs SLIDE-ACTION with 3 wheel rear axle assembly and adjustable torsion springsSLIDE-ACTION with 3 wheel rear axle assembly and adjustable torsion springs
Front Track Shock
<!-->
 Hydraulic Twin Tube AC5SAC5S
Rear Track Shock
-->
 Hydraulic Twin Tube AC5SAC5S
Rear Travel
<!-->
 10.7 13.513.5

Dimensions

Jag 400 Jag 400 Sno Pro SGJag 400 Sno Pro
Overall Chassis Length
-->
 115 in 115 in115 in
Overall Chassis Width
<!-->
 44-45 in 46-47 in46-47 in
Overall Chassis Height
-->
 51 in 45 in45 in
Track Type
<!-->
 Hacksaw RipsawRipsaw
Track Width
-->
 14 in 15 in15 in
Track Length
<!-->
 121 in 129 in129 in
Lug
-->
 1.00 in 1.25 in1.25 in
Pitch
2.86 in 2.86 in2.86 in
Ski Stance
<!-->
 37.5-38.5 in - Adjustable 39.5-40.5 in - Adjustable39.5-40.5 in - Adjustable
Ski Type/Width
-->
 Trail - 6 in Trail - 6 inTrail - 6 in
Runner Type
<!-->
 Single runner w/ carbide Twin SplitTwin Split

Instrumentation

Jag 400 Jag 400 Sno Pro SGJag 400 Sno Pro
Type of Gauge
-->
 Standard StandardStandard
Speedometer
<!-->
 Digital DigitalDigital
Tachometer
Digital DigitalDigital
Odometer
-->
 Digital DigitalDigital
Fuel
<!-->
 Digital DigitalDigital
Oil
-->
 Indicator Light Indicator LightIndicator Light
Coolant
<!-->
 Indicator Light Indicator LightIndicator Light
Clock
-->
 N/A N/AN/A
Battery Voltage
<!-->
 N/A N/AN/A
Altimeter
-->
 N/A N/AN/A
Hours
<!-->
 Digital DigitalDigital

Features

Jag 400 Jag 400 Sno Pro SGJag 400 Sno Pro
Color
-->
 Black WhiteGreen
Heat Exchanger
Front Long Tunnel Front Long TunnelFront Long Tunnel
Starter
<!-->
 Turnkey Electric Start Turnkey Electric StartTurnkey Electric Start
Handlebars
-->
 Hooked HookedHooked
Lighting
<!-->
 Halogen 1-Bulb Halogen 1-BulbHalogen 1-Bulb
Seating
-->
 Mid-Size Mid-SizeMid-Size
Standard Accessories
<!-->
 Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether SwitchHand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch
Windshield
-->
 15.5 in High 4-inch Low4-inch Low
.oem-arctic-cat .responsive-table tbody td:not([data-heading='Jag 400']):not([data-heading='']){display:none;}
