Specs
Overview
- 270cc 4-Stroke Engine
- Double A-Arm Front Suspension
- Automatic CVT Transmission
Engine & Drivetrain

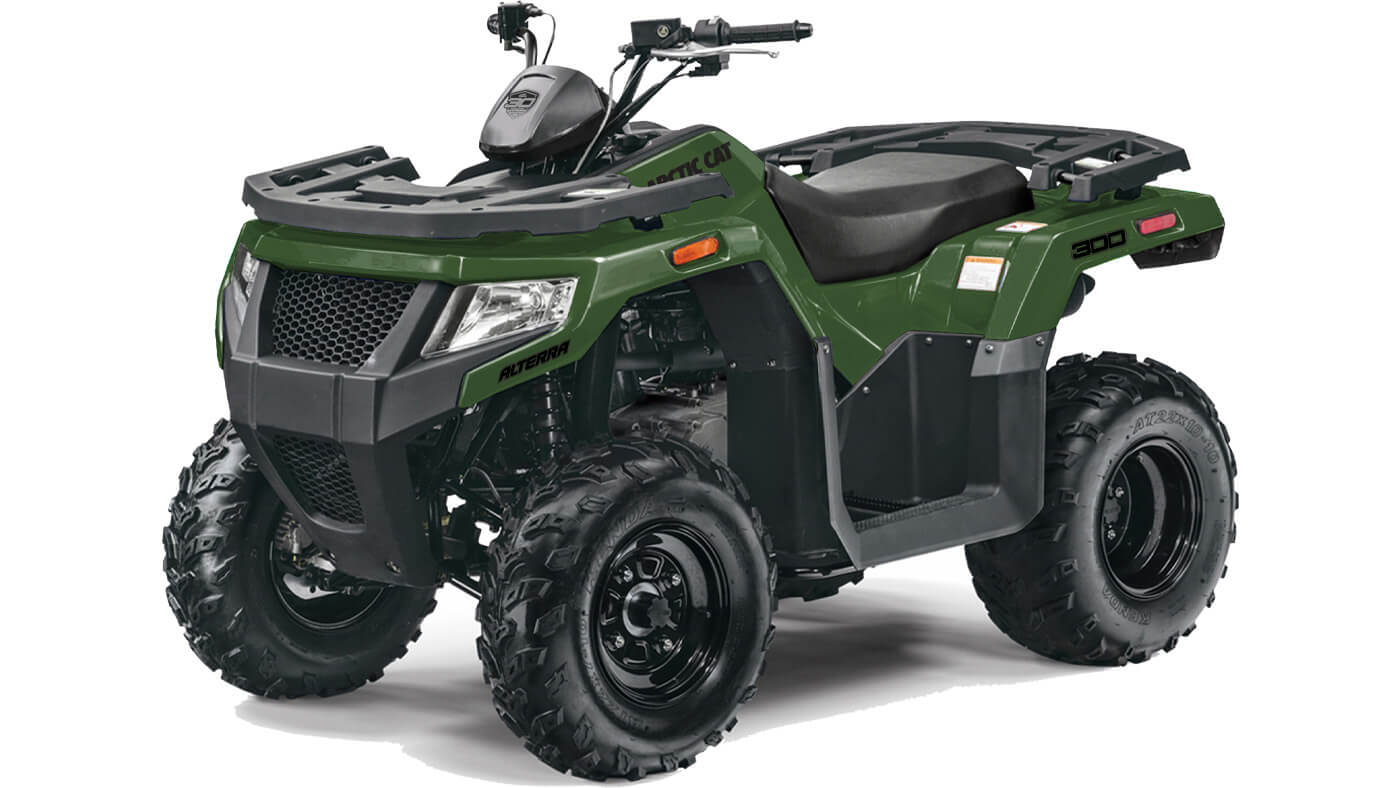

| Alterra 300 | Alterra 300 | |
|---|---|---|
Engine Type | Liquid-Cooled, Single Cylinder | Liquid-Cooled, Single Cylinder |
Displacement <!--> | 270cc | 270cc |
Drive Train --> | CVT | CVT |
Drive System <!--> | 2WD Shaft Drive | 2WD Shaft Drive |
Fuel System --> | Carburetor | Carburetor |
Gear Selection <!--> | H/L/N/R | H/L/N/R |
Rear Differential --> | Locked | Locked |
Steering & Suspension
| Alterra 300 | Alterra 300 | |
|---|---|---|
Steering <!--> | Standard | Standard |
Front Suspension --> | Double A-Arm with 5 in. (12.7 cm) Travel | Double A-Arm with 5 in. (12.7 cm) Travel |
Rear Suspension <!--> | Double A-Arm with 5 in. (12.7 cm) Travel | Double A-Arm with 5 in. (12.7 cm) Travel |
Brake System --> | Dual Front Hydraulic Disc, Single Rear Hydraulic Disc | Dual Front Hydraulic Disc, Single Rear Hydraulic Disc |
Foot Brake <!--> | Foot Operated Rear Brake | Foot Operated Rear Brake |
Parking Brake --> | Lockable Hand Lever | Lockable Hand Lever |
Front Tires <!--> | 22 x 7 - 10 | 22 x 7 - 10 |
Rear Tires --> | 22 x 10 - 10 | 22 x 10 - 10 |
Wheels <!--> | Steel | Steel |
Performance
| Alterra 300 | Alterra 300 | |
|---|---|---|
Total Capacity --> | 325 lbs (147.4 kg) | 325 lbs (147.4 kg) |
Front Rack <!--> | 50 lbs. (22.7 kg) | 50 lbs. (22.7 kg) |
Rear Rack --> | 100 lbs. (45.4 kg) | 100 lbs. (45.4 kg) |
Towing Capacity <!--> | 500 lbs. (226.8 kg) | 500 lbs. (226.8 kg) |
Dimensions
| Alterra 300 | Alterra 300 | |
|---|---|---|
Overall Length --> | 72.6 in. (184.5 cm) | 72.6 in. (184.5 cm) |
Overall Width <!--> | 41.3 in. (105 cm) | 41.3 in. (105 cm) |
Overall Height --> | 45.8 in. (116 cm) | 45.8 in. (116 cm) |
Overall Weight (Dry) <!--> | 517 lbs (234.5 kg) | 517 lbs (234.5 kg) |
Wheel Base --> | 46 in. (117 cm) | 46 in. (117 cm) |
Ground Clearance <!--> | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) |
Fuel Capacity --> | 3.2 gal (12 L) | 3.2 gal (12 L) |
Hitch <!--> | Hitch Plate | Hitch Plate |
Color Options
| Alterra 300 | Alterra 300 | |
|---|---|---|
Standard Colors --> | Marsh Green | Marsh Green |
Features
| Alterra 300 | Alterra 300 | |
|---|---|---|
Skid Plate <!--> | Full Length | Full Length |
Standard Instrumentation --> | Digital Multifunction Guage | Digital Multifunction Guage |
Lighting <!--> | Dual High/Low Beam Halogen Headlights and Dual Halogen Brake Light/Tail Light | Dual High/Low Beam Halogen Headlights and Dual Halogen Brake Light/Tail Light |
Start Method --> | Electric Start | Electric Start |
Warranty
| Alterra 300 | Alterra 300 | |
|---|---|---|
Warranty <!--> | 12 Month | 12 Month |
